"Bridge Kidney arms and Heart Uvula" Tap Tone Tuning Tool;
(Modified 2/2021)
PageTTT_034

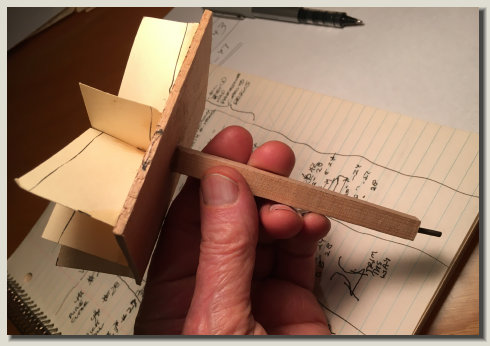

   In order to hear clearly the tap tones of three small areas of the violin bridge and Tap Tone Tune them successfully; this hand made tool allows this to be done.
  It is made from a piece of violin top plate spruce; a small finish nail, and some pieces of paper from a manila folder, and some glue (either five minute epoxy or violin makers glue).

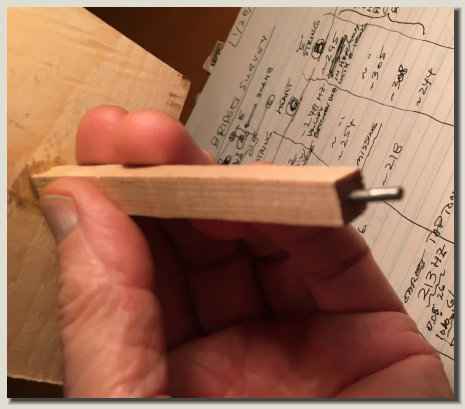

  The spruce plate is about 1/10 th of an inch thick, quarter sawn violin spruce top plate wood. The tap base is also spruce. The top 1/2 inch or so is rounded and glued into a predrilled hole in the miniature sound board. Pre drill the end slightly undersize before nailing in the finish nail (cut off head and round end)

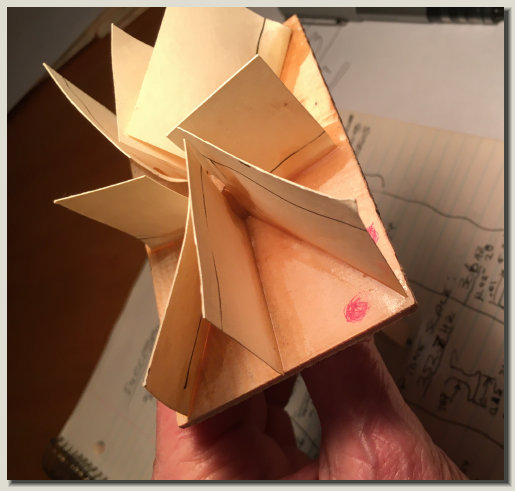

  The mania folder paper pieces are glued on the bottom and against the protruding center square spruce down. These amplify the sound we want to hear, so we can compare it to a wood reference ; either of tools mentioned on tool directory page.
